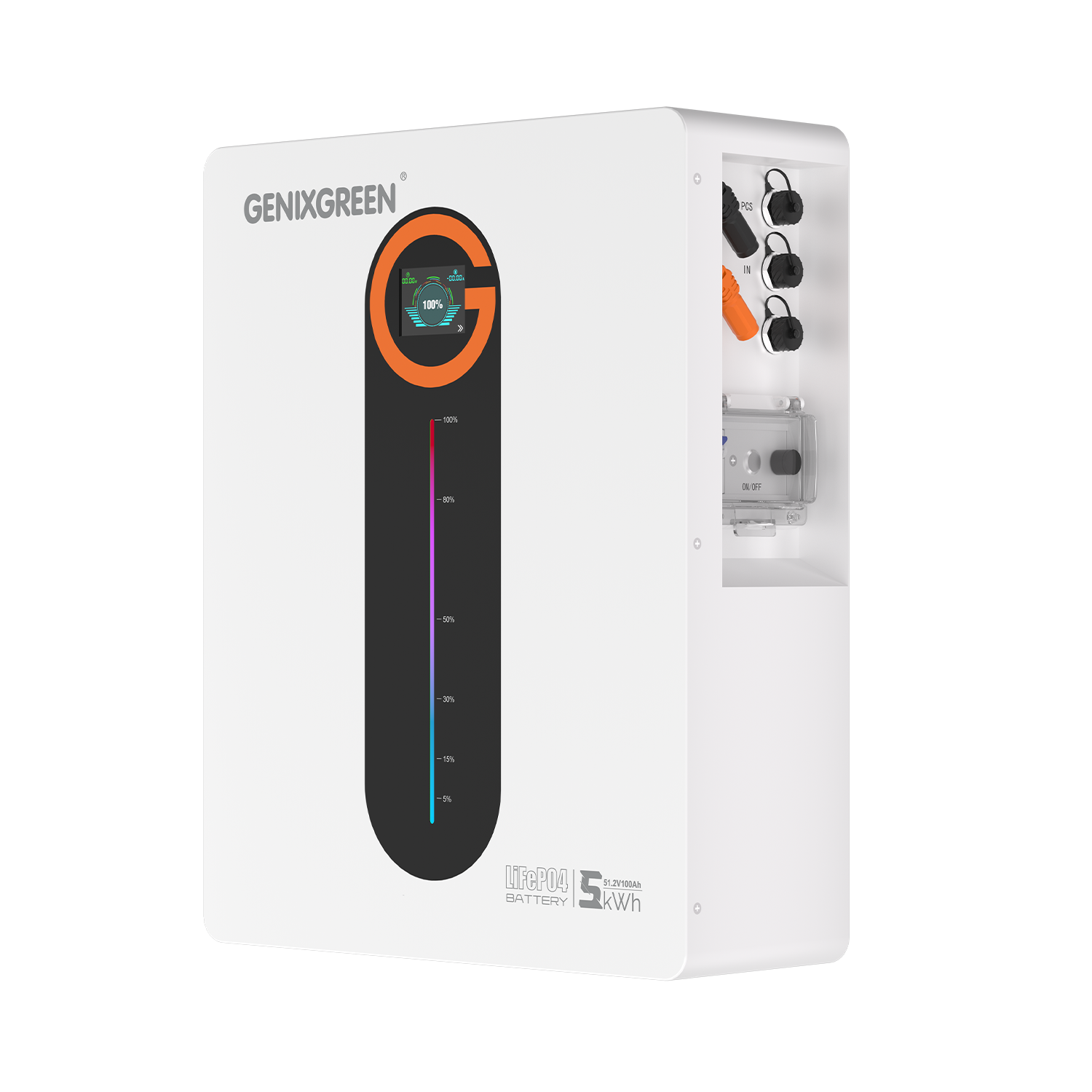

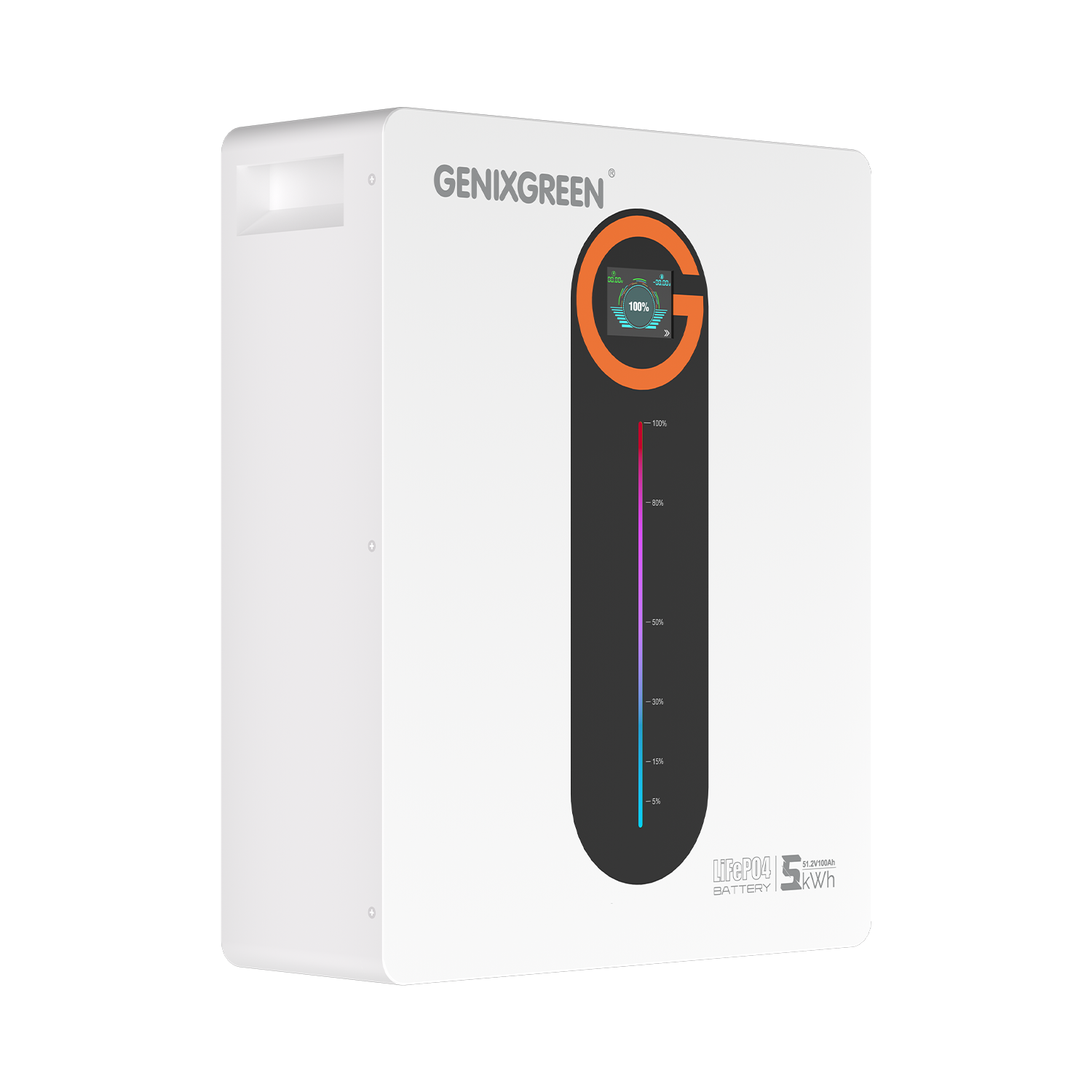

ES-BOX12F 5.12kWh



Home



Product



GENIXGREEN



ES-BOX12F 5.12kWh

5.12kWh 100Ah LFP
Suitable for all weather,indoors or outdoors
IP65 Protection Fearless of outdoor installation,strong environmental adaptability
Max.64modules parallel

SKU：

Home Energy Storage Battery

Classification：

Power Storage Wall

Tag：

ES-BOX12F ES-BOX12F Series Powerwall 5kWh 5.12kWh 100Ah 51.2V low voltage Wall Mounted Floor Standing WiFi Remote Monitoring Support multiple clusters in parallel Remote onitoring

Brand：

GENIXGREEN

Get a quote



Product Features

Automatic Self-heating

-20℃ to 55℃ operating temperature(optional)

All-round Safety

Short-circuit lockout,surge-resistant,safe, and reliable

Battery Equalization

Supports for mixing modules underdifferent SOC to ensure battery life

Max.64

modules parallel

5 years

standard warranty

IP65 Protection

Fearless of outdoor installation,strong environmental adaptability

1C/1C continuous

charge and discharge

Product Parameters

Product Model	ES-BOX12F	ES-BOX12F PLUS	ES-BOX12F MAX	ES-BOX12F MAX+
Nominal Energy	5.12kWh	10.24kWh	14.34kWh	16.08kWh
Nominal Voltage	51.2V	51.2V	51.2V	51.2V
Nominal Capacity	100Ah	200Ah	280Ah	314Ah
Cell Type	LFP	LFP	LFP	LFP
Standard Charge Voltage	56.8V	56.8V	56.8V	56.8V
Max.Charge/Discharge Current	100Ah	150A	200A	200A
Discharge Cut-Off Voltage	44.8V	44.8V	44.8V	44.8V
Parallel Function	Parallels: Max.16, Max.33, Max.64 (Optional)
Communication Interface	RS485. USB. CAN
Cycle Life	＞8000 Cycles(25°C±2°C, 0.5C,90%DOD@65%EOL)		≥10000 Cycles (25°C±2°C, 0.35C, 90%DOD@65%EOL)
Charge Temperature Range	0-55°C
Discharge Temperature Range	-20-55°C
Certification	Pack: CEI 0-21/CE/IEC 62619/UL1973 by Intertek/MSDS/UN38.3 Cell: UL1642/IEC 62619/CE/EMC/ROHS/MSDS/UN38.3
Dimension	480600180mm (Excluding Wall-Mounted Brackets	480650245mm (Excluding Wall-Mounted Brackets)	490840250mm (Excluding Wheels)	490840250mm (Excluding Wheels)
Net Weight	52Kg	98Kg	126Kg	128Kg
Installation Method	Wall-Mounted/Floor Standing
Warranty	5 Years(Under Warranty Terms)
Energy Throughput"'	11 MWh	22MWh	31 MWh	35MWh
Display	RGB LED Light
Include	Circuit Breaker
Optional	Automatic Heating. Fire Extinguishing Module. WiFi Remote Monitoring
Protection Grade	IP65
