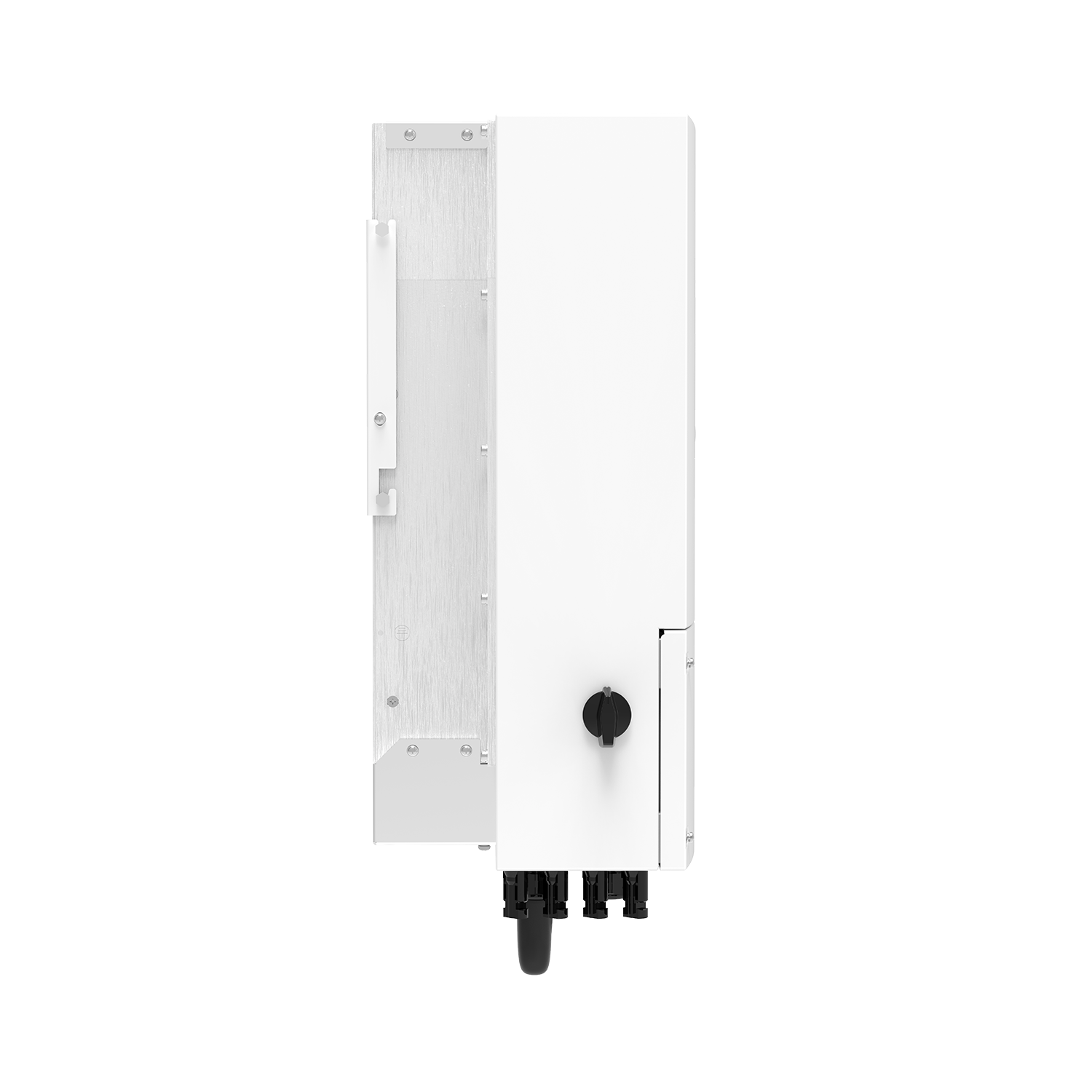

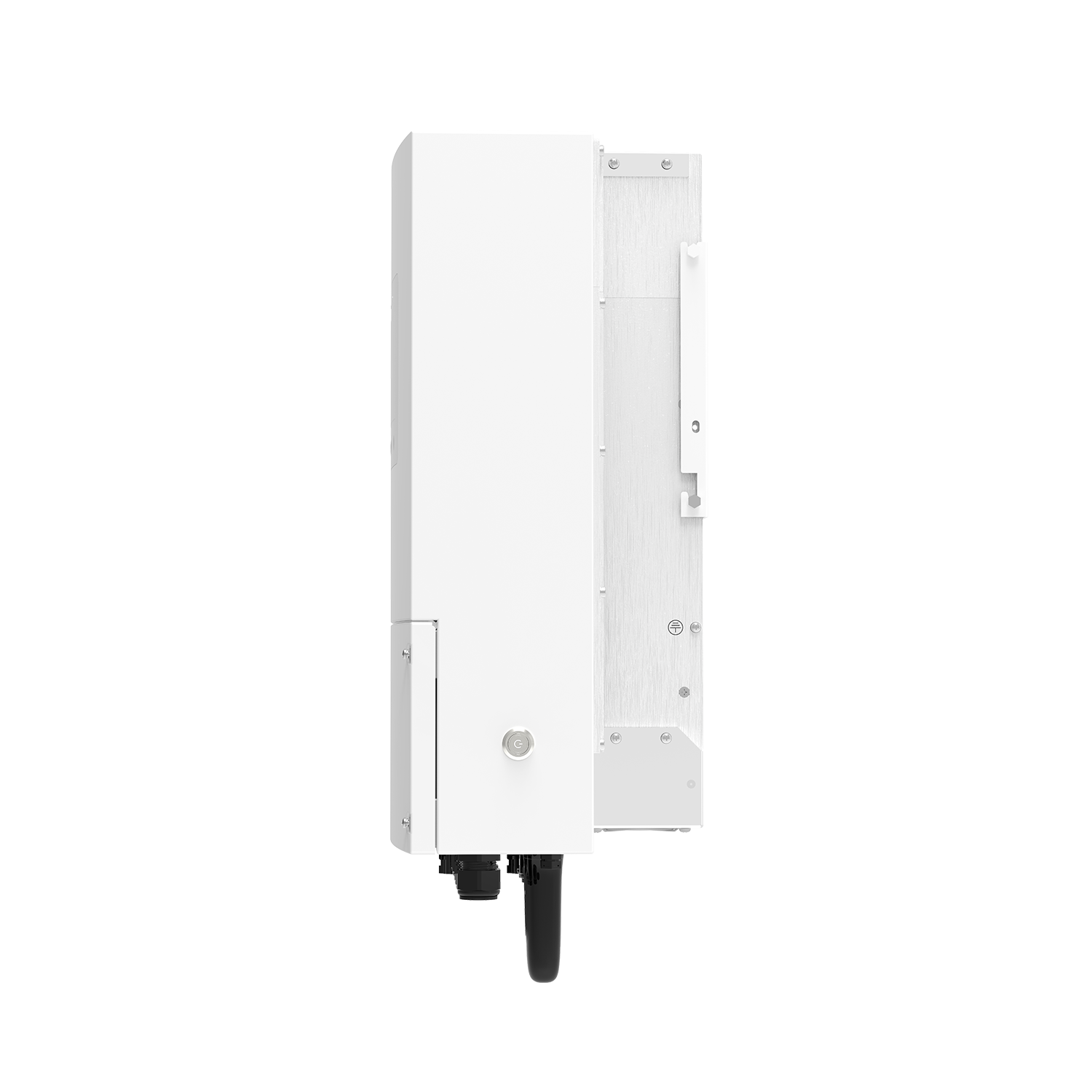

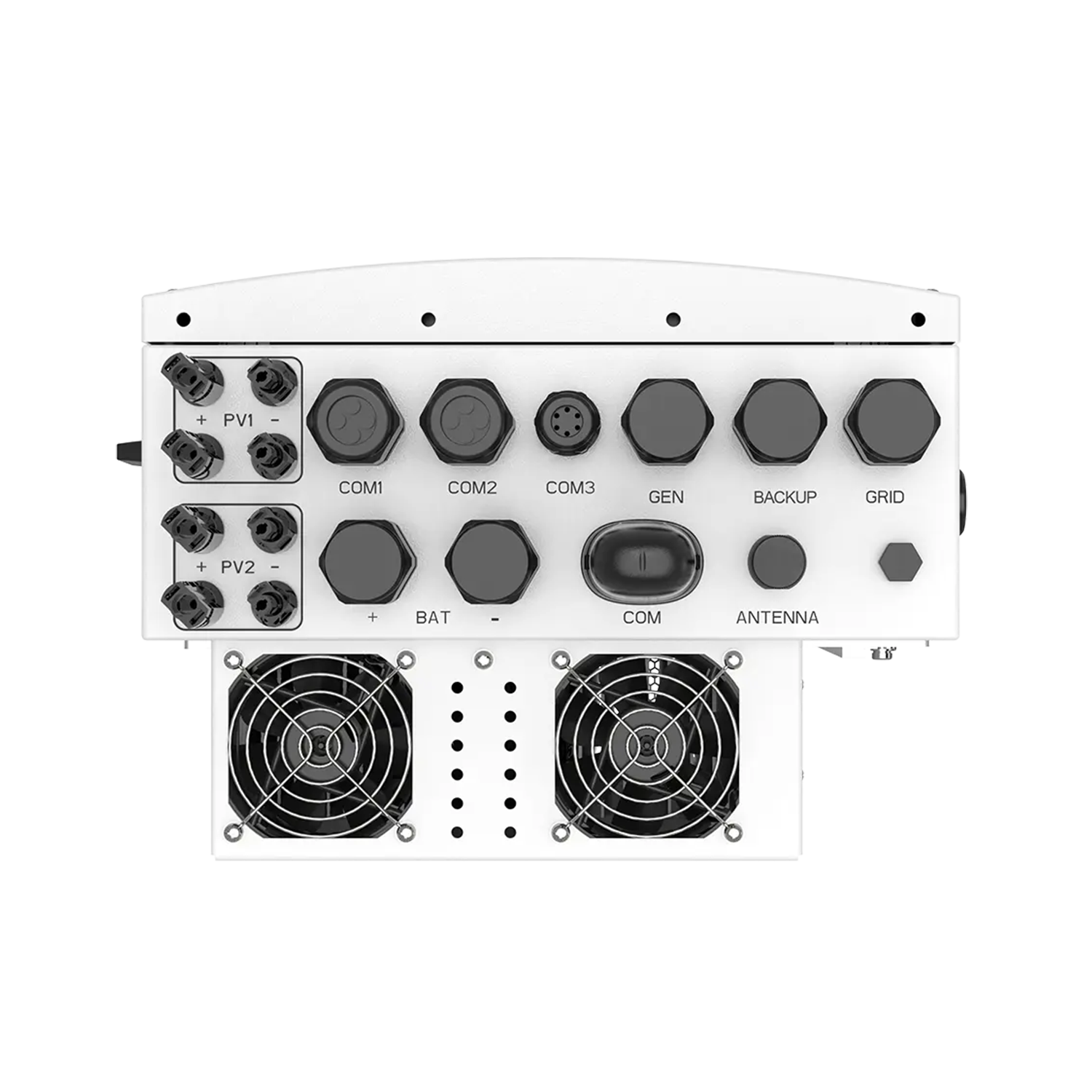

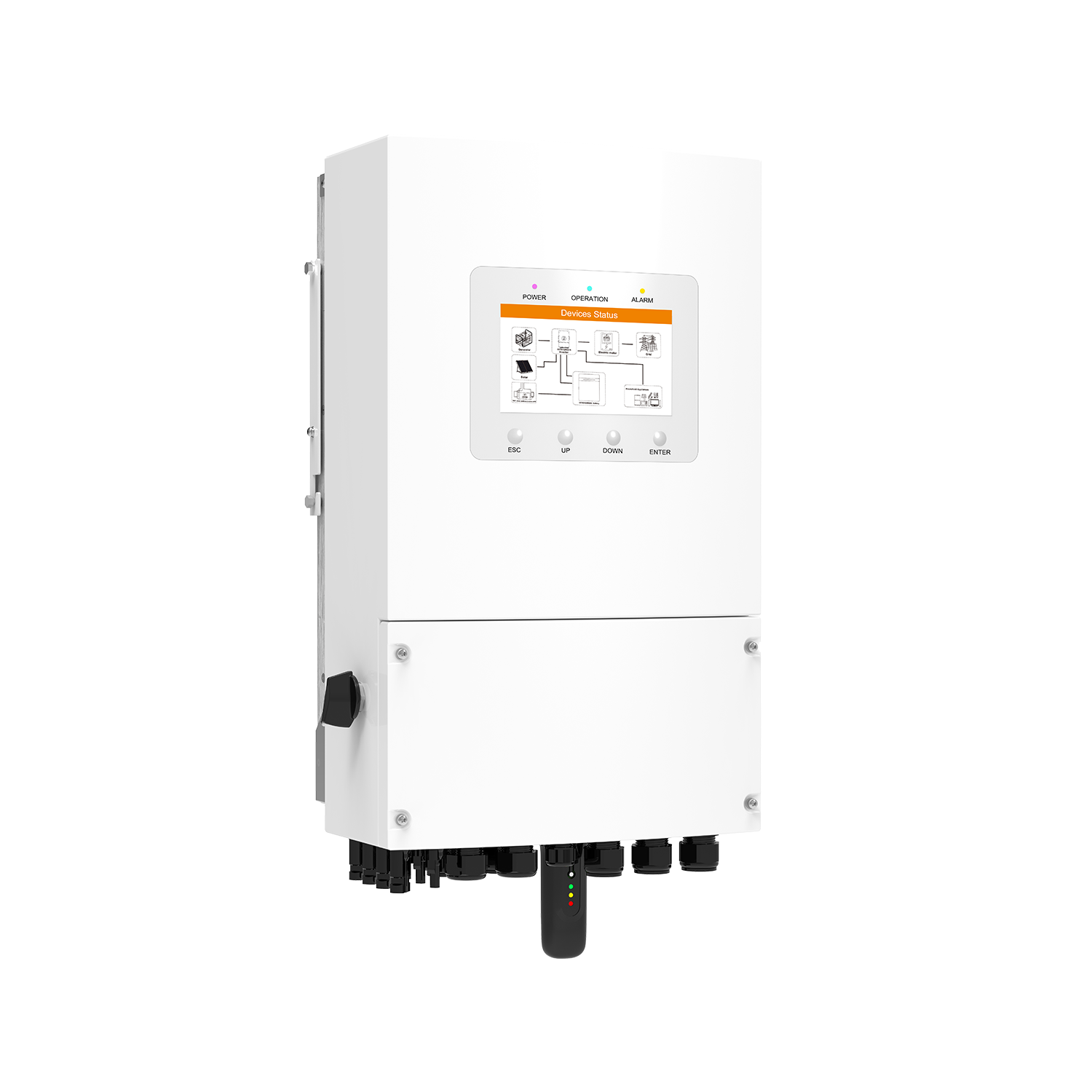

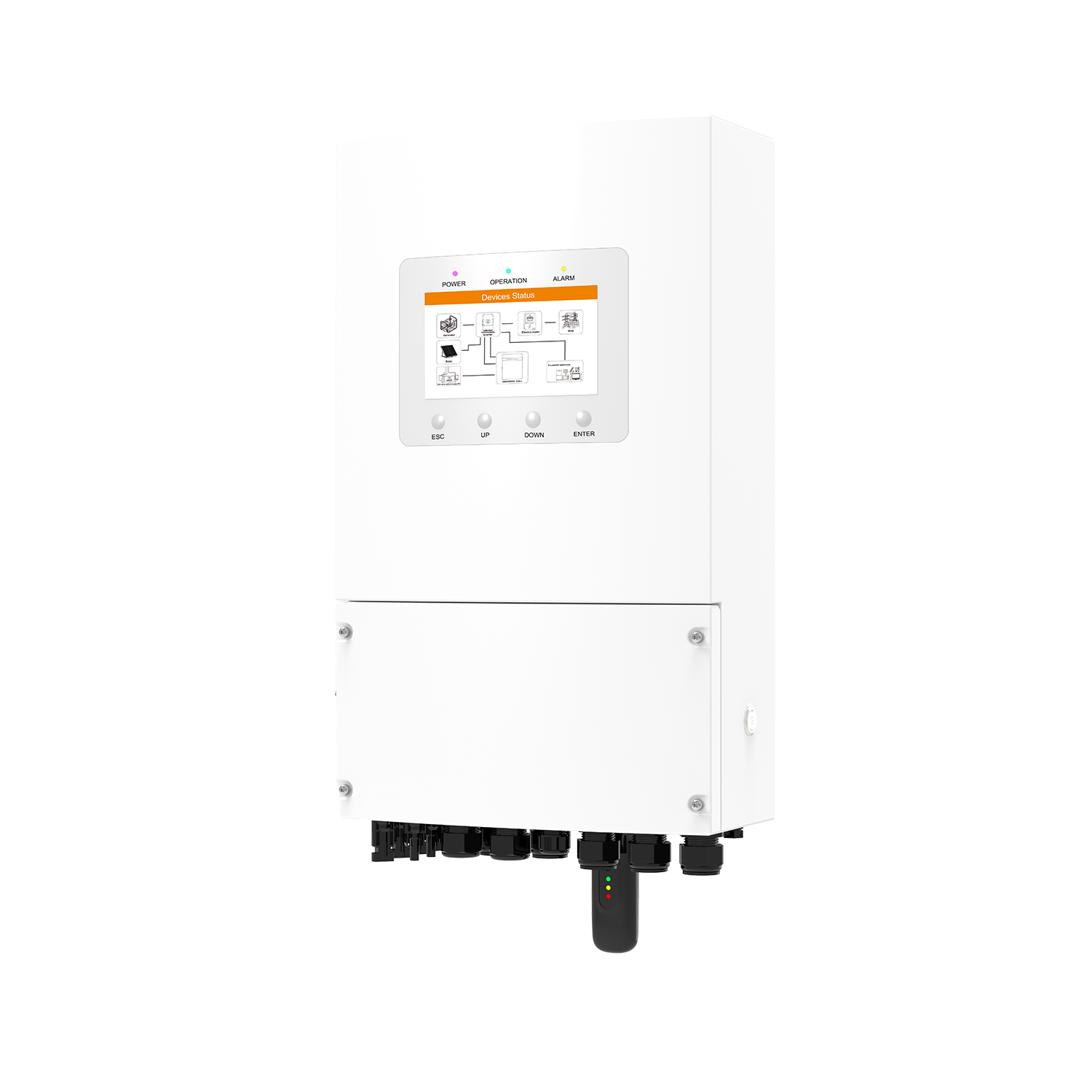

G-DDMHE-08K-1PTW



Home



Product



GENIXGREEN



G-DDMHE-08K-1PTW

Smart Management
Seamless integration with VPP and EMS platformsfor enhanced energy optimization
GENIXGREEN Al intelligently manages charging anddischarging based on TOU (Time-of-Use) electricity pricing

Outstanding Performance
Switching time <10ms
160% PV input, maximizing solar energy utilization

SKU：

Single-phase Low Voltage Energy Storage Inverter

Classification：

Low voltage Inverter

Tag：

G-DDMHE Series Inverter Low Voltage Photovoltaic Low Voltage Inverter UPS-level switching capability Multiple units can be connected in parallel to form a large-capacity single-phase or three-phase system Maximum output power 48kW Supports AC coupling 6-stage charge discharge settings Wall-mounted installation

Brand：

GENIXGREEN

Get a quote



Product Features

Pure sine wave output inverter

Independently developed PCB board and heat dissipation system, with stable quality

Flexible installation and high charging efficiency

Intelligent battery charging design, optimizing battery life

Can achieve parallel expansion, with 6 units working simultaneously

WiFi function is optional

Product Parameters

Model	G-DDMHE-08K-1PTW	G-DDMHE-12K-1PTW
PV INPUT
Max. Input Voltage DC	500V	550V
MPPT Voltage Range DC	90-435V	80-520V
Max. Input Current DC	2x42A	3x40A
Isc PV(Absolute Max.) DC	2x48A	3x50A
BATTERY
Battery Type	Lithium-ion/Lead-acid
Battery Voltage Range DC	40-60V
Max.Charge/Discharge Current DC	190A/190A	250A/250A
AC-OUTPUT(BACK-UP)
Max./Rated Output Power AC	8000W	12000W
Nominal Output Voltage AC	1/N/PE, 220V/230V	1/N/PE AC 220V, 1/N/PE AC 230V
Nominal Frequency	50/60Hz
Max./Rated Output Current AC	36.4A/34.8A	54.5A/52.2A
AC-OUTPUT(GRID SIDE)
Max./Rated Apparent Output Power AC	8000VA	12000VA
Nominal Output Voltage AC	1/N/PE, 220V/230V	1/N/PE AC 220V, 1/N/PE AC 230V
Nominal Frequency	50/60Hz
Max./Rated Output Current AC	36.4A/34.8A	54.5A/52.2A
Power Factor Range	-0.8~1~+0.8
Protective Class	/
Ingress Protection	IP66
Ambient Temperature	-40 +60°C	-25~+60°C
AC-INPUT(FOR GRID PORT AND GEN PORT)
Nominal Voltage AC	1/N/PE,220V/230V	1/N/PE AC 220V, 1/N/PE AC 230V
Max./Rated Continuous Current	50A	/
Grid Max.(Rated)continuous current	/	81.8A/78.3A
Gen Max.(Rated)continuous current	/	54.5A/52.2A
Nominal Frequency	50/60HZ
